DGSHAPE DWX-4 4-Axis Compact Dental Mill

Overview

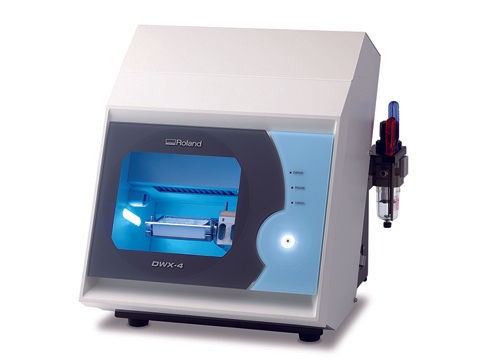

The DGSHAPE DWX-4 is a compact 4-axis dry dental mill designed to bring accurate, economical CAD/CAM production in-house. Its small desktop footprint makes it well suited to laboratories entering digital dentistry, low-volume production, urgent jobs and backup milling.

Key Features

• Compact 4-axis desktop milling platform
• Open-architecture workflow with bundled CAM options varying by region
• Automatic tool changer for unattended tool changes
• Integrated ionizer and air-blow system support clean, consistent dry milling
• Simple operation through VPanel

Applications

Single crowns, small bridges, inlays, onlays, copings and temporary restorations.

Ideal For

Small dental laboratories, practices beginning in-house CAD/CAM production, and larger labs requiring a compact secondary mill.

Technical Specifications

• Milling process: Dry
• Axes: 4
• Materials: Pre-sintered zirconia, wax, PMMA and approved composite resin materials
• Workpiece capacity: Block up to 76 × 30 mm, 16–22 mm high; pin-type up to 85 × 40 × 22 mm
• External dimensions: approximately 340 × 365 × 405 mm
