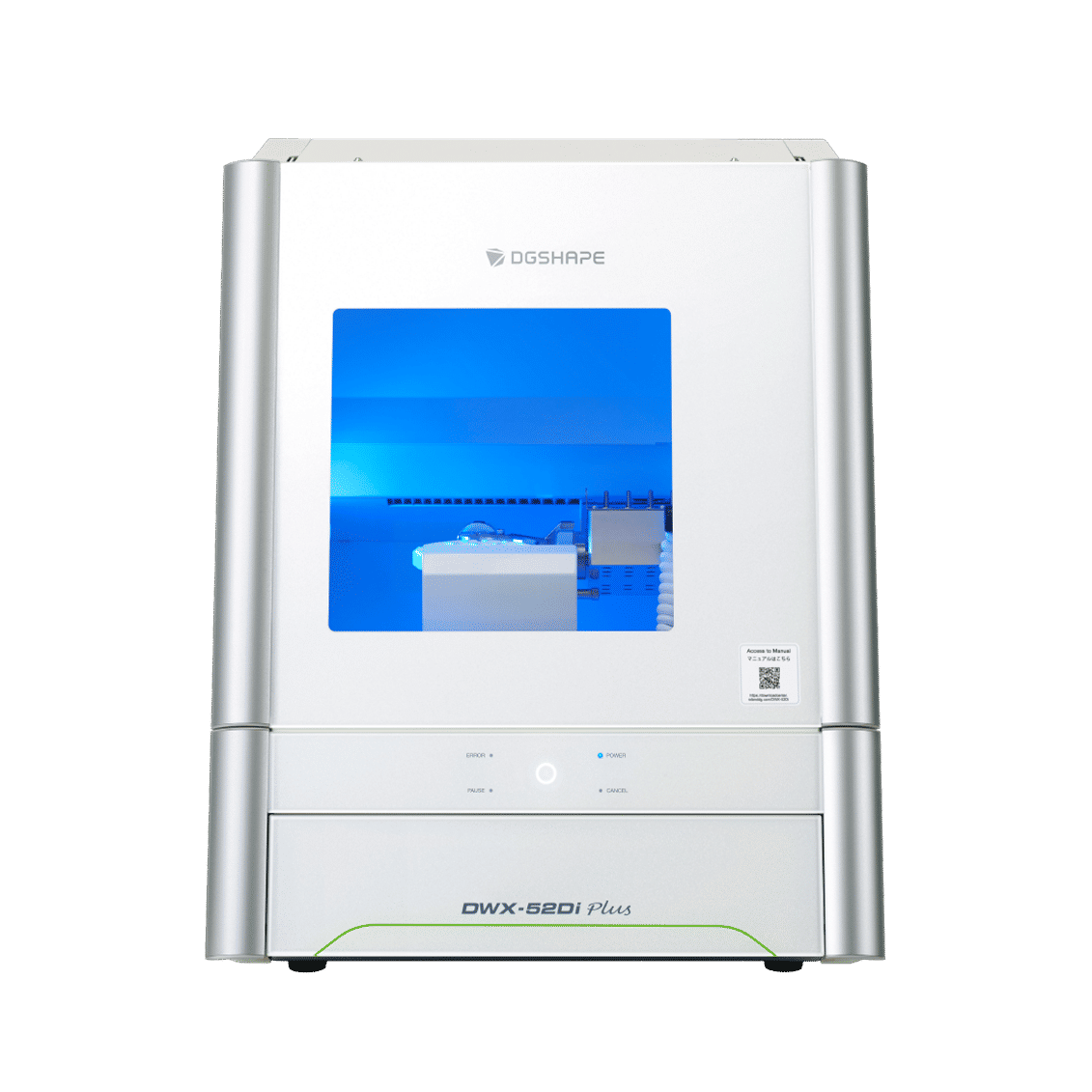

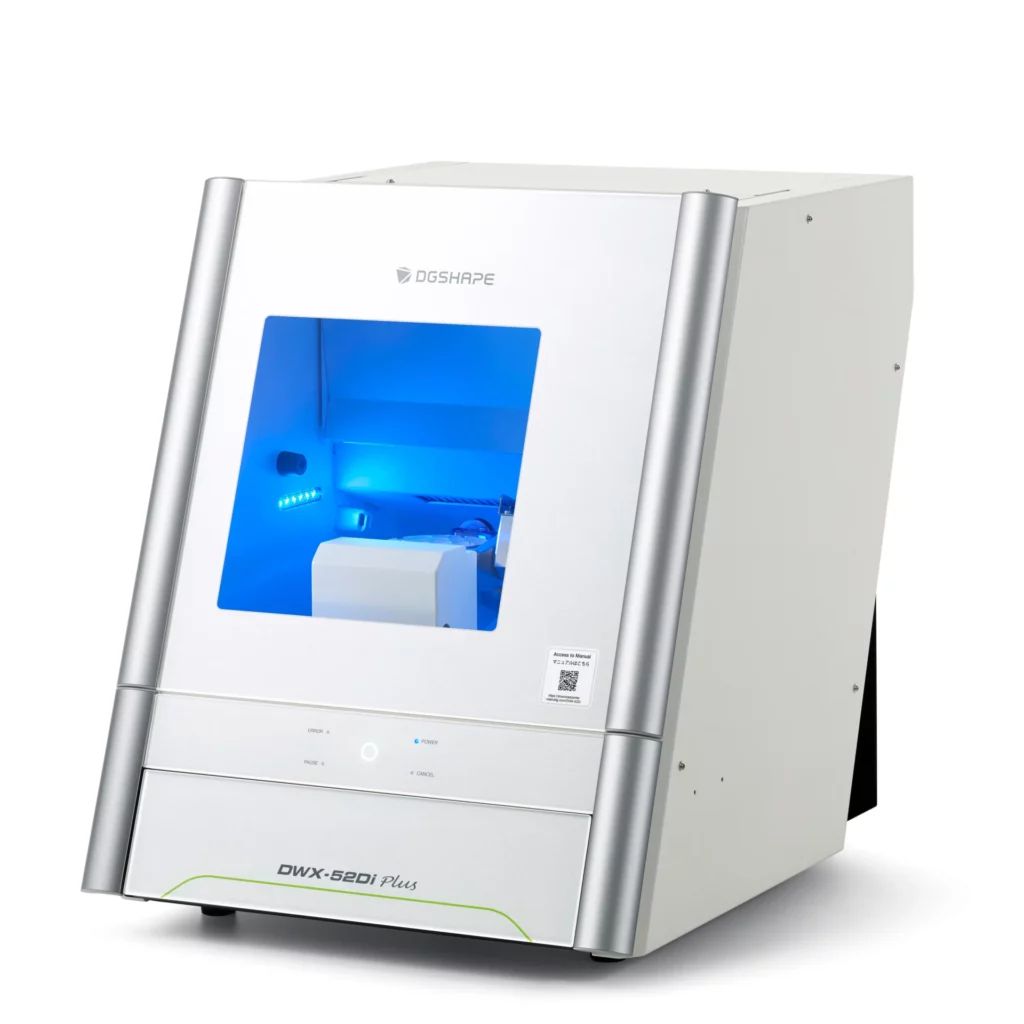

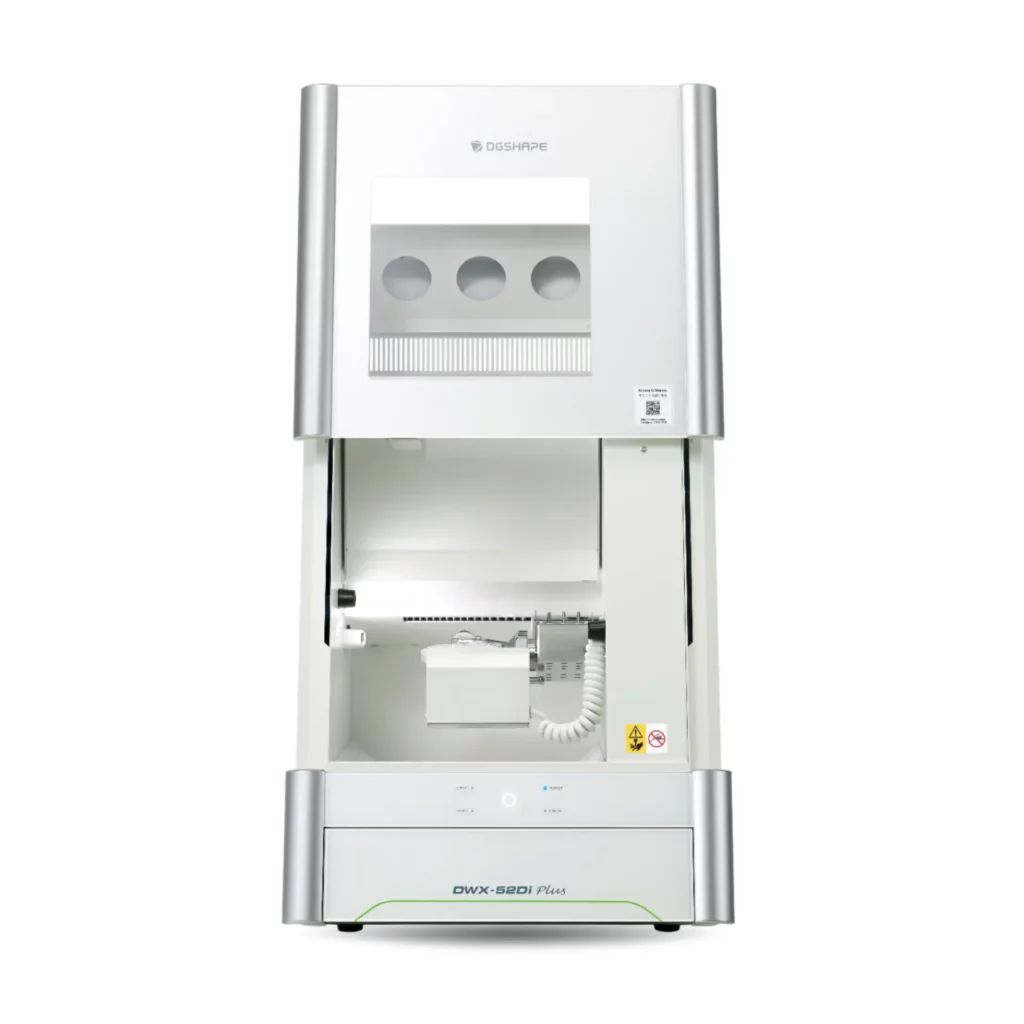

DGSHAPE DWX-52Di Plus 5-Axis Dental Mill

Overview

The DGSHAPE DWX-52Di Plus is an efficient 5-axis dry dental milling solution designed for broad restorative production at an accessible entry point. An upgraded spindle, C-type clamp, pin-type adapter support and DGSHAPE CLOUD connectivity combine precision with an easy, productive workflow.

Key Features

• Precise 5-axis dry milling
• Robust spindle and 15-station automatic tool changer
• C-type clamp improves access for complex geometries
• Disc and pin-type workpiece support
• VPanel control and DGSHAPE CLOUD monitoring
• Energy-efficient operation

Applications

Crowns, copings, bridges, inlays, onlays, veneers, implant bars, screw-retained crowns, splints, surgical guides and removable prostheses.

Ideal For

Dental laboratories seeking a cost-effective, versatile 5-axis dry mill for everyday restorations and expanded prosthetic workflows.

Technical Specifications

• Milling process: Dry
• Axes: 5
• Materials: Zirconia, wax, PMMA, composite resin, PEEK, PEKK, gypsum, glass-fibre reinforced resin, CoCr sinter metal and polycarbonate
• Disc: 98.5 mm stepped section; 95 mm body diameter; up to 60 mm high
• Operating speed: 6–1,800 mm/min
• Spindle speed: 6,000–30,000 rpm
• Tool capacity: 15
• External dimensions: 495 × 660 × 600 mm
• Weight: 67 kg
