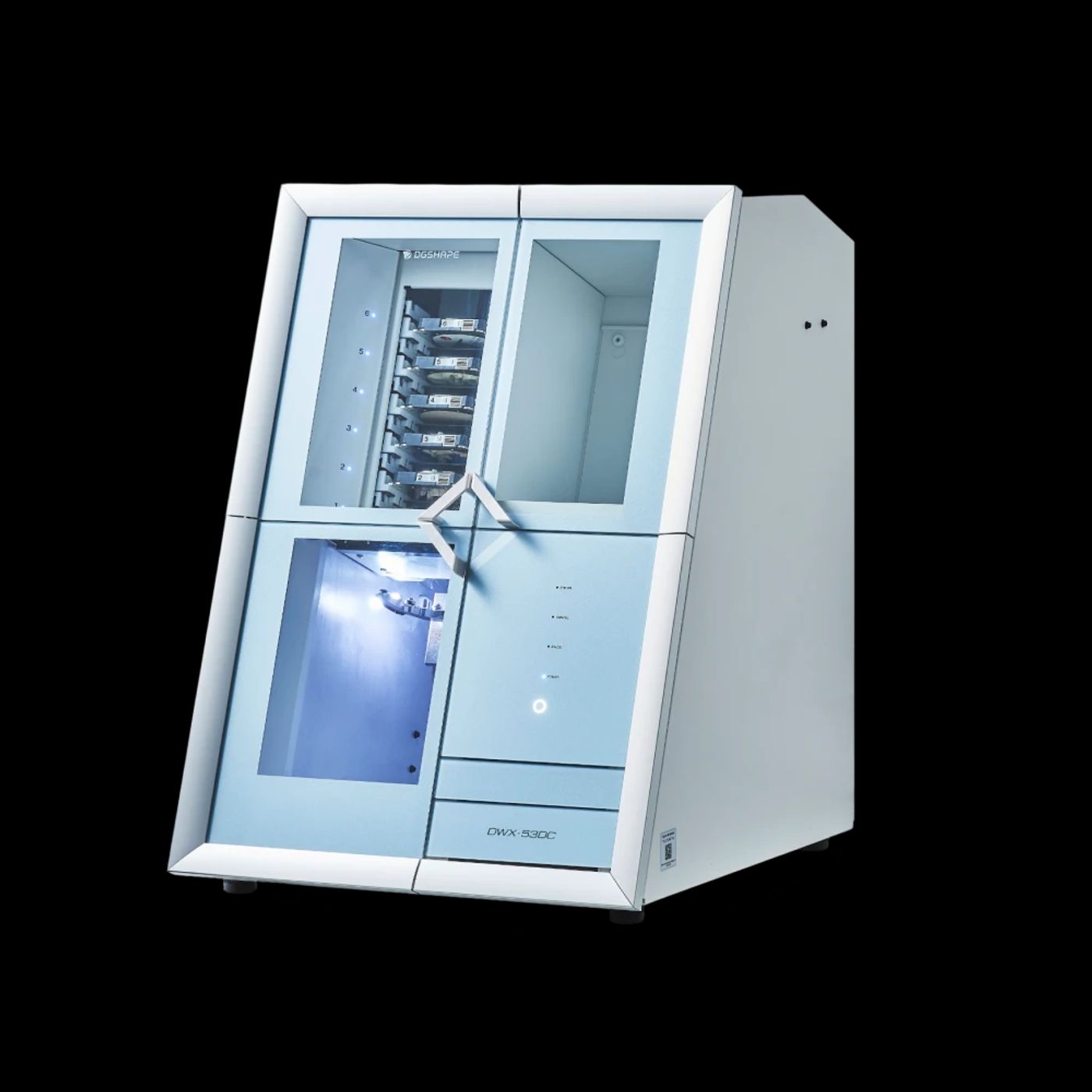

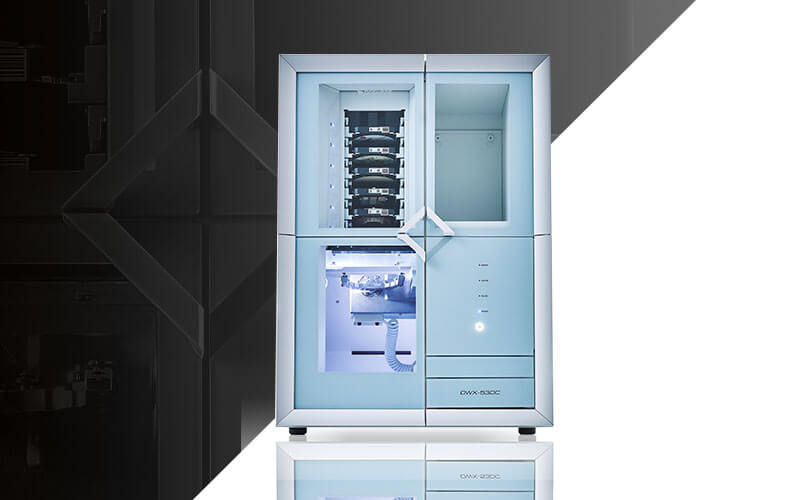

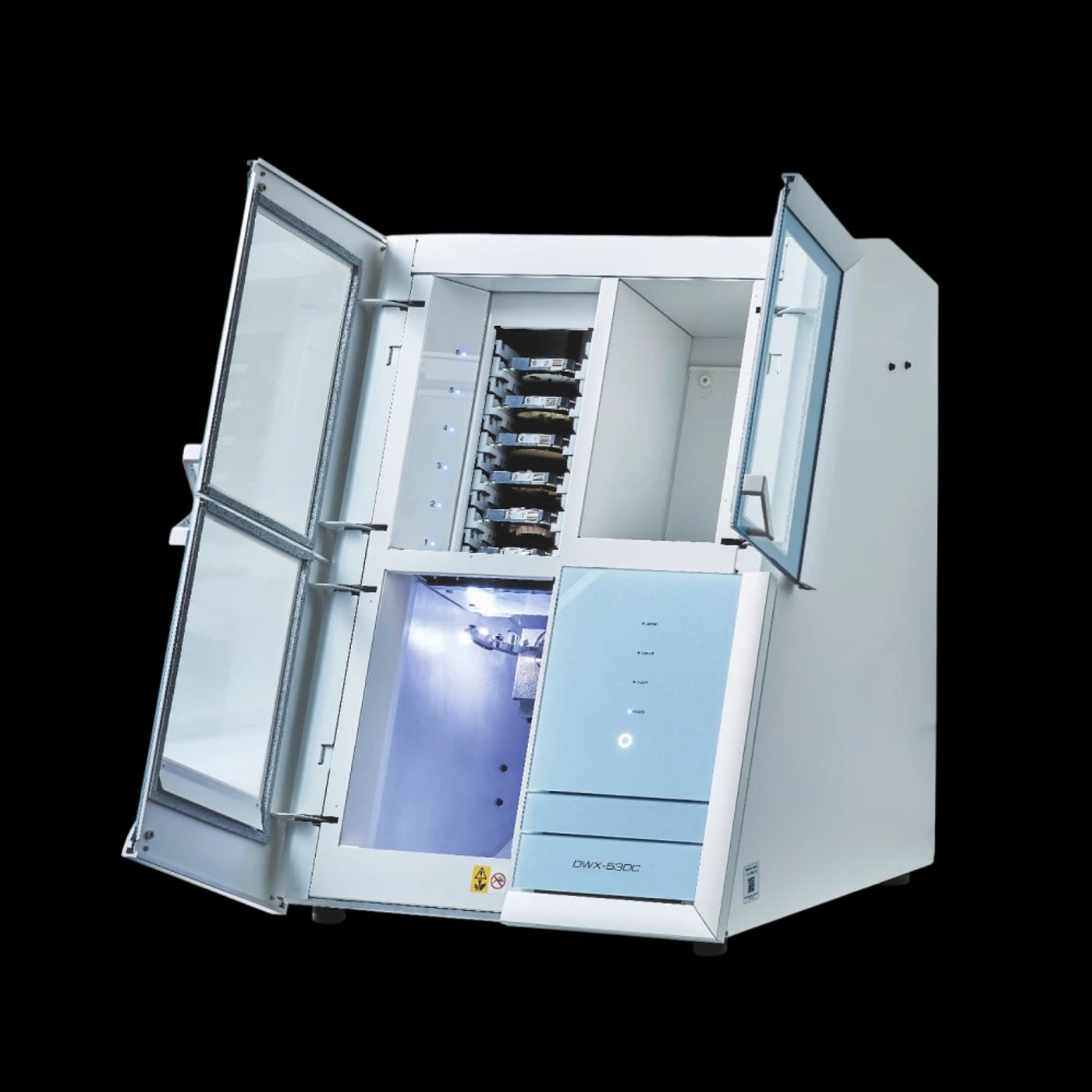

DGSHAPE DWX-53DC 5-Axis Dental Mill with Disc Changer

Overview

The DGSHAPE DWX-53DC is an advanced 5-axis dry dental mill with an automatic six-disc changer for high-volume, unattended production. Its rigid frame, temperature compensation, faster motion, intelligent adapter management and broad material support deliver consistent results across complex restorations and digital denture workflows.

Key Features

• Automatic changer accommodates up to six adapters
• Fast, precise 5-axis dry milling
• 15-station automatic tool changer
• ±35° B-axis travel and open-edge adapter support
• Automatic adapter identification and job management
• VPanel and DGSHAPE CLOUD productivity monitoring
• Designed for continuous and overnight production

Applications

Crowns, bridges, veneers, copings, implant bars, Toronto bridges, splints, surgical guides and removable dental prostheses.

Ideal For

High-volume dental laboratories that need scalable multi-material automation, dependable overnight milling and premium restoration quality.

Technical Specifications

• Milling process: Dry
• Axes: 5
• Material adapters: Up to 6
• Materials: Zirconia, wax, PMMA, composite resin, PEEK, PEKK, gypsum, glass-fibre reinforced resin, CoCr sinter metal and polycarbonate
• Operating speed: X/Y up to 3,000 mm/min; Z up to 2,700 mm/min
• Spindle speed: 6,000–30,000 rpm
• Rotary travel: A ±360°; B ±35°
• Tool capacity: 15
• External dimensions: 650 × 763 × 831 mm
• Weight: 120 kg
