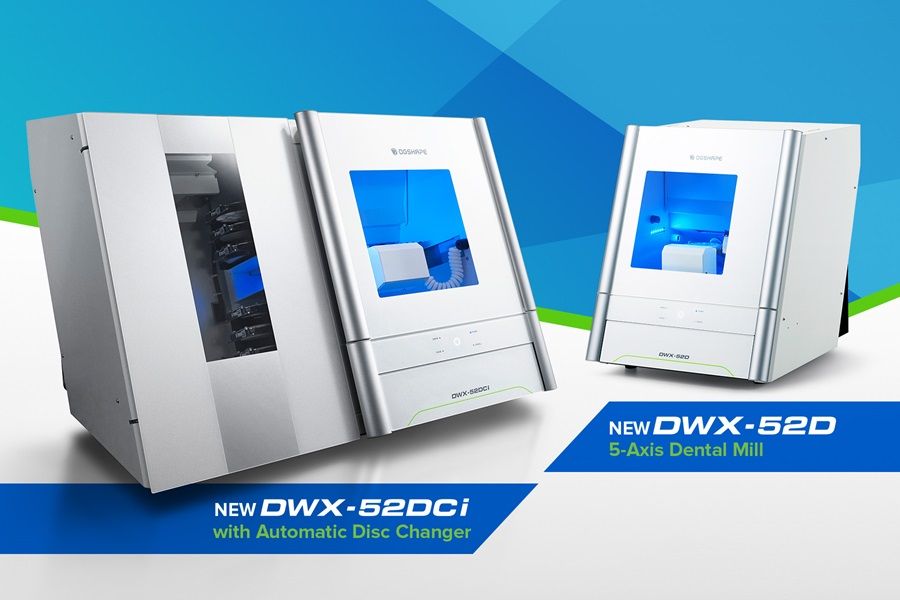

DGSHAPE DWX-52DCi 5-Axis Dental Mill with Disc Changer

Overview

The DGSHAPE DWX-52DCi combines 5-axis dry milling with an automatic six-disc changer for efficient, unattended dental production. Intelligent tool and material management helps laboratories schedule mixed jobs and maximise machine utilisation across longer production runs.

Key Features

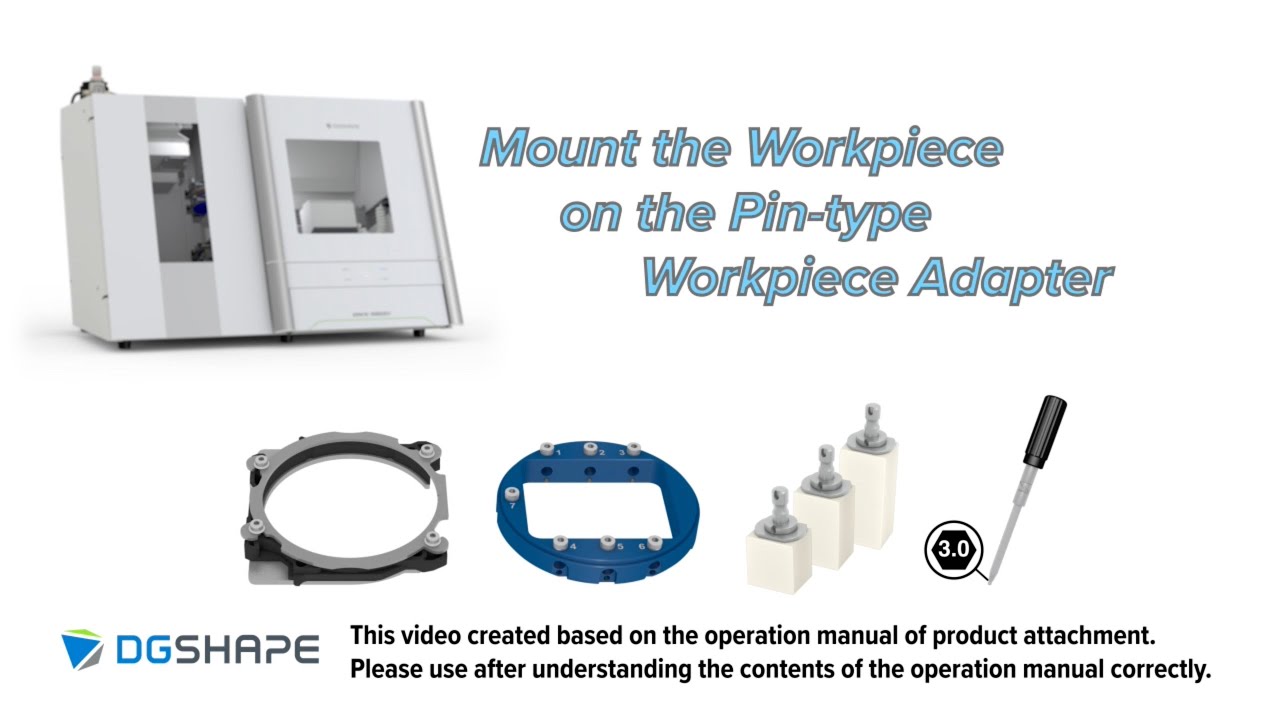

• Automatic changer accommodates up to six material adapters
• Simultaneous 5-axis dry milling
• 15-station automatic tool changer
• Automatic disc identification and job management
• VPanel monitoring and productivity reporting
• C-type clamp supports detailed milling and broad application access

Applications

Crowns, bridges, copings, inlays, onlays, veneers, implant bars, splints, surgical guides and removable prostheses.

Ideal For

Medium- to high-volume dental laboratories requiring automated multi-material production and overnight milling.

Technical Specifications

• Milling process: Dry
• Axes: 5
• Material adapters: Up to 6
• Materials: Zirconia, wax, PMMA, composite resin, PEEK, PEKK, gypsum, glass-fibre reinforced resin, CoCr sinter metal and polycarbonate
• Spindle speed: 6,000–30,000 rpm
• Tool capacity: 15
• External dimensions: approximately 656 × 790 × 600 mm
• Weight: approximately 105 kg
